Cardan Shafts
You are here: Home \ Cardan Shafts
For almost 40 years, SAN’s cardan shafts has been recognized for quality and performance and is being used in a variety of applications which includes locomotives, off highway vehicles like dump trucks, steel plants and many more industrial applications. With manufacturing facilities in Mysore, near Bangalore supported by SAN’s network of distribution and after sales operations, our expertise is built on a good understanding of the drive line parts and power transmissions in the above industries.
Applications:
- Locomotives,
- Off highway vehicles,
- Steel mills,
- Paper industries,
- Cement plants
Features:
- Service free sealing system with special greasing allows little or no maintenance
- Less weight improves fuel economy
- Low noise and vibration
- Needle bearings for improved life

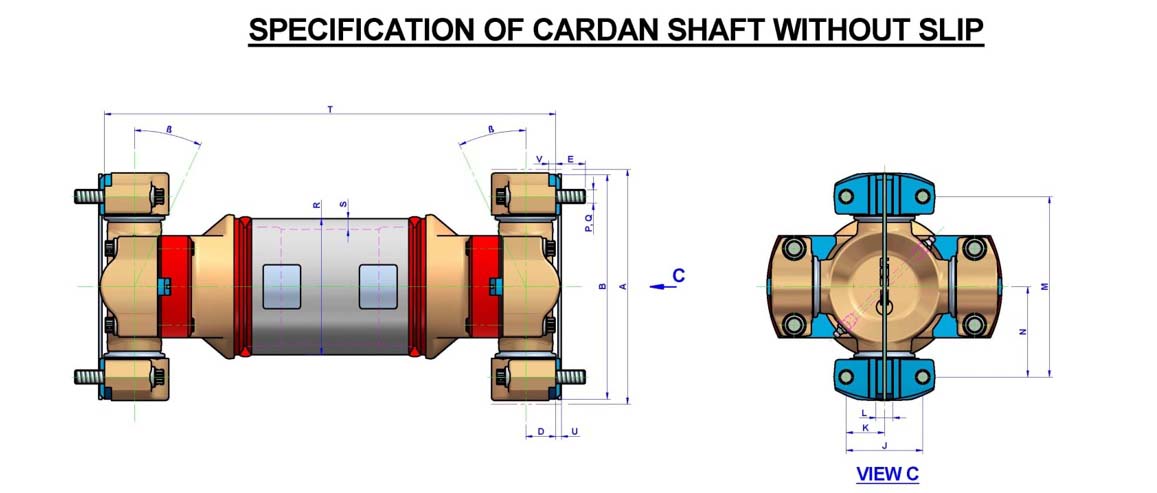

Technical specification:
| SERIES | SWING DIAMETER | PILOT DIAMETER OF MATING PART | BEARING HEIGHT | BOLT PROJECTION | SLIP | BOLT HOLE SPREAD ACROSS BEARING WINGS | BOLT HOLE LOCATION FROM CENTER LINE | KEY WIDTH OF MATING PART | BOLT HOLE SPREAD ACRESS YOKE | BOLT HOLE LOCATION FROM CENTER LINE | BOLT HOLE DIAMETER | BOLT SIZE | OUTSIDE TUBE DIAMETER | DIMENSION | COMPRESSED OR FIXED LENGTH TO FACE OF BEARING | MAX. OPERATING ANGLE | KEY WAY DEPTH ON MATING PART | PILOT LENGTH OF MATING PART | BOLT INSERSION FROM JOINT SIDE |
| A | B | D | E | G | J | K | L | M | N | P | Q | R | S | T | ß | U | V | _ | |
| 9.5C | 219 | 209.52 | 28 | 27.5 | 127 | 71.44 | 35.72 | 15.85 | 168.28 | 84.14 | 13.5 | 1/2"-20UNF | 127 | 10 | VARIABLE | 25° | 5.7 | 4.8 | YES |
| 10C | 225.4 | 212.7 | 32.57 | 28.7 | 127 | 92.1 | 46.05 | 25.37 | 165.1 | 82.55 | 17.5 | 5/8"-18UNF | 139.7 | 10 | VARIABLE | 22° | 9.3 | 6.4 | YES |
| 12C | 301.6 | 289.05 | 32.57 | 28.7 | 127 | 92.1 | 46.05 | 25.37 | 241.3 | 120.65 | 15 | M14x1.5 | 165.1 | 10 | VARIABLE | 12° | 9.3 | 6.4 | YES |
| W18 | 235 | 222.25 | 34.036 | 27.5 | 127 | 88.9 | 44.45 | 25.36 | 182.72 | 86.35 | 16.7 | 5/8"-18UNF | 139.7 | 12.7 | VARIABLE | 20° | 9.52 | 6.29 | YES |
| W38 | 288 | 273 | 41 | 8.6 | 100 | 104 | 52 | 31.75 | 205 | 102.5 | 24.5 | M24x1.5 | 165.1 | 12.7 | VARIABLE | 18° | 9.52 | 6.35 | YES |
| SERIES | SWING DIAMETER |
PILOT DIAMETER OF MATING PART |
BEARING HEIGHT |
BOLT PROJECTION |
SLIP | BOLT HOLE SPREAD ACROSS BEARING WINGS |
BOLT HOLE LOCATION FROM CENTER LINE |
KEY WIDTH OF MATING PART |
BOLT HOLE SPREAD ACRESS YOKE |
BOLT HOLE LOCATION FROM CENTER LINE |
BOLT HOLE DIAMETER |
BOLT SIZE |
OUTSIDE TUBE DIAMETER |
DIMENSION | COMPRESSED OR FIXED LENGTH TO FACE OF BEARING |
MAX. OPERATING ANGLE |
KEY WAY DEPTH ON MATING PART |
PILOT LENGTH OF MATING PART |
BOLT INSERSION FROM JOINT SIDE |
| A | B | D | E | G | J | K | L | M | N | P | Q | R | S | T | ß | U | V | _ | |
| 9.5C | 219 | 209.52 | 28 | 27.5 | – | 71.44 | 35.72 | 15.85 | 168.28 | 84.14 | 13.5 | 1/2"-20UNF | 127 | 10 | VARIABLE | 25° | 5.7 | 4.8 | YES |
| 10C | 225.4 | 212.7 | 32.57 | 28.7 | – | 92.1 | 46.05 | 25.37 | 165.1 | 82.55 | 17.5 | 5/8"-18UNF | 139.7 | 10 | VARIABLE | 22° | 9.3 | 6.4 | YES |
| 12C | 301.6 | 289.05 | 32.57 | 28.7 | – | 92.1 | 46.05 | 25.37 | 241.3 | 120.65 | 15 | M14x1.5 | 165.1 | 10 | VARIABLE | 12° | 9.3 | 6.4 | YES |
| W18 | 235 | 222.25 | 34.036 | 27.5 | – | 88.9 | 44.45 | 25.36 | 182.72 | 86.35 | 16.7 | 5/8"-18UNF | 139.7 | 12.7 | VARIABLE | 20° | 9.52 | 6.29 | YES |
| W38 | 288 | 273 | 41 | 8.6 | – | 104 | 52 | 31.75 | 205 | 102.5 | 24.5 | M24x1.5 | 165.1 | 12.7 | VARIABLE | 18° | 9.52 | 6.35 | YES |
